A professional paper machine making facotry in China

Fuly automatic facial tissue boxing machine production line is to slit and fold the embossed or printed jumbo roll paper through knife roller, and form a long log tissue paper in a continuous interfolding chain. t is automatically separated and fold according to the set folds number as needed, The folded long log tissue paper are automatically pushed forward or sideways into the conveyor to the log saw, cut into the expected size, and then delivery to the packaging machine process to be packaged into paper box, soft film and bottom pull type , The machine adopts vacuum adsorption, inverter speed regulation, automatic counting, tolding,and human-machine intertace parameter input. lt has the advantages offast speed, neat folding, easy operation, and labor cost saving.

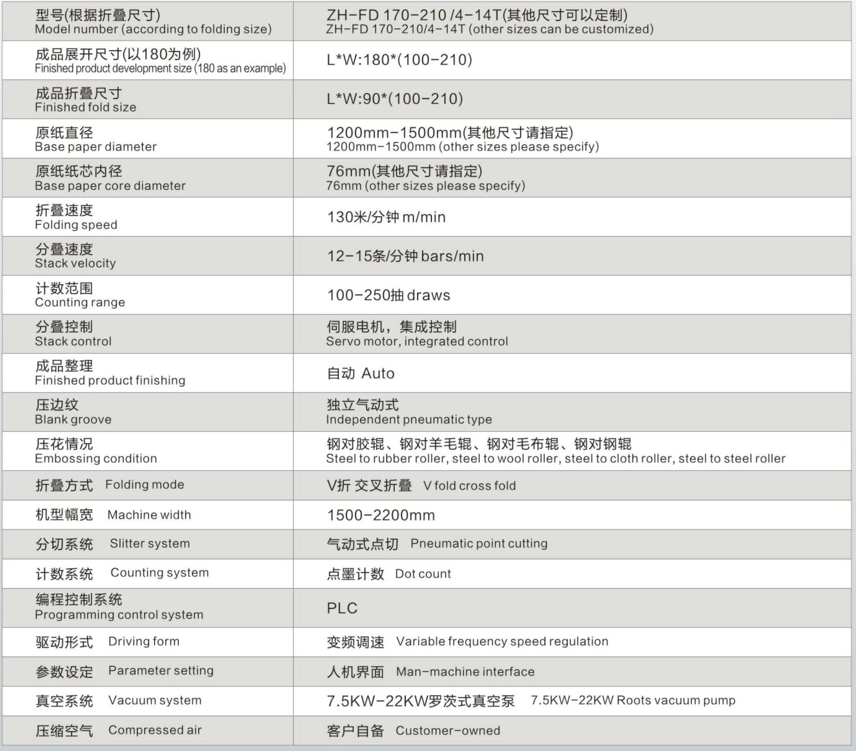

1.Production speed: 130m/min,separate folding speed 12-15 log/min.
2.Automatic transfer instead of manual taking paper to the conveyor.with width available:1500-2200mm.
3.High degree automation, powerful extended function in integratedcontrol system, with remote detection function.
4.Simple structure, touch screen easy operation and maintenance.
5.Stable operation, high production efficiency.
6.With automatic paper tail folding function .
7.Mechanical, electrical and optical integrated control technologyautomatic detection,accurate feedback.
8.Equipped with pre-pressing and servo flipping mechanism to ensureneat and stable products. independent variable inverter, servo motor.electric hoisting and pneumatic arm loading.
9.Vacuum adsorption V-shaped interfolding (optional), folding methodadopts new energy-saving constant vacuum.10.Jumbo raw paper can select facial tissue/non-woven fabric/creampaper. Dry tissue production speed 160 packs/minute; cream paperproduction speed: 130 packs/minute, facial tissue 180 packs/minute.
